Related equipment - Rail Testing Press
About the Equipment
Equipment for checking the mechanical strength of rails and welded joints

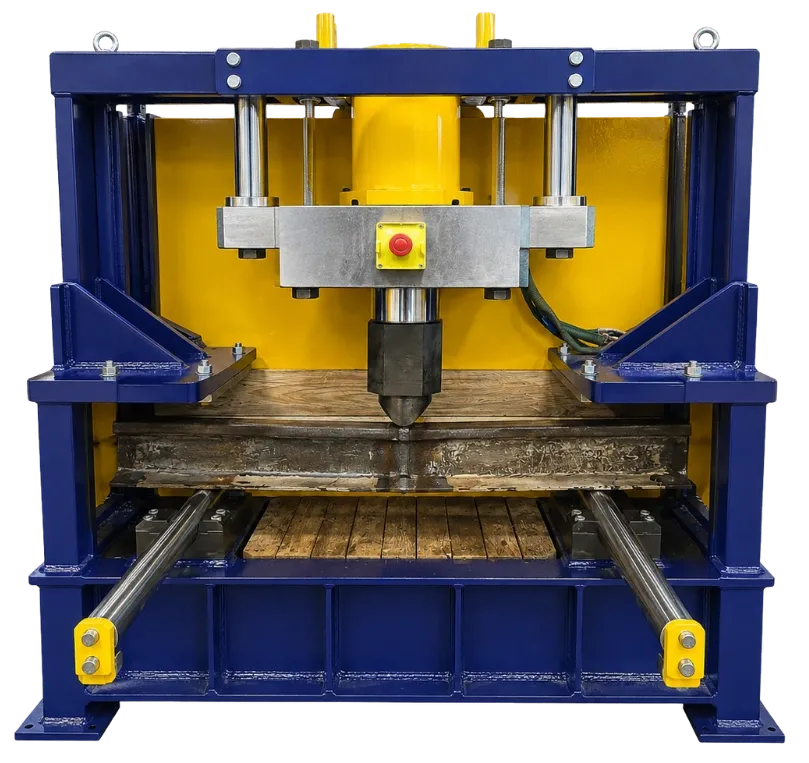

The rail testing press is equipment intended for checking the mechanical strength of rails and of joints made by Flash-Butt Welding. The system is used in testing laboratories, production units and quality control centres to assess the conformity of welds and their behaviour under mechanical loads.
Built for industrial applications, the press allows bending tests and other mechanical tests required to verify the performance of rails and welded joints to be carried out, in accordance with the requirements of the applicable standards.
Quality control for railway infrastructure
Checking the strength of a weld is one of the most important stages of the quality control process.
The press applies controlled forces to the rail or to the welded area, making it possible to determine the behaviour of the material under conditions similar to those encountered in service. The test parameters are monitored and recorded for each test carried out, providing reproducible results and full traceability.
Advantages of the equipment
Controlled mechanical testing
The precise application of forces allows the behaviour of rails and welds to be evaluated under controlled conditions.
High precision
The hydraulic system and rigid structure ensure a uniform distribution of force and the repeatability of the tests.
Parameter recording
The applied force, displacement and the other monitored values can be recorded and used to document the results.
Configurable for different profiles
The press can be adapted for testing several types of rails and profiles used in railway infrastructure.
Intuitive operation
The control interface allows the test parameters to be set up quickly and the entire process to be monitored.
Applications
The rail testing press is used for:
- checking Flash-Butt Welding welds;
- testing new rails;
- quality control in production;
- mechanical testing laboratories;
- validating welding technologies;
- research and development activities;
- checking the conformity of products before they are put into service.
Main Features
Hydraulic system for testing the mechanical strength of rails and welded joints,
with controlled force application and full parameter recording.
- Equipment type: Hydraulic press for rail testing
- Field of use: Testing of rails and welded joints
- Test type: Controlled mechanical testing
- Drive system: Hydraulic
- Control: Automatic
- Monitoring: Force, displacement and other configured parameters
- Data recording: Yes
- Configuration: Customizable depending on the application
Downloads
You'll find here all the useful materials about the machine: the brochure, the technical datasheet and the user guide, for a complete understanding and correct use of the equipment.
Brochure
A general overview of the product, its benefits and main applications in an easy-to-follow format.
Technical Datasheet
Complete technical specifications, main features and essential information about the product.
User Guide
Operating instructions, usage recommendations and information for the correct operation of the equipment.
